Backhoe digger for ATV incl. cab

Mini-excavator for ATVs with 10 hp petrol motor and cab

• Incl. vinyl cab

• Mini-excavator with 10 hp petrol motor

• 2 metres excavation depth

• Incl. serrated bucket 23 cm wide

• The bucket comes with a grapple attachment that makes it easier to pick up stones and similar materials

• Oil included

Kellfri’s mini-excavator for the ATV GAATV2PRO is an all-round machine that can be used for a range of different groundwork where space is limited, such as confined areas, hilly terrain or narrow passages. Thanks to the slim and compact design, the operator can handle the backhoe digger with high precision and dig in precise places without damaging surrounding areas or vegetation

The backhoe digger has been improved with an even stronger structure on the backhoe arm and a reinforced chassis. The machine can be used for digging up a variety of materials, including stones, waste, trees and soil, as well as digging ditches, levelling ground or even clearing snow.

The backhoe digger is well-built and compact with its own built-in power source

The backhoe digger is well-built and compact with a 10 hp petrol motor that is started with a recoil starter, which means that an external power supply is not required to operate the machine. This makes it self-sufficient and independent of external factors. An ATV backhoe digger is typically less expensive than a larger excavator or tractor, making it a more cost-efficient alternative for smaller projects. A mini-excavator is also less dependent on fuel and requires less maintenance than a larger excavator.

The mini-excavator is equipped with a 23 cm wide serrated bucket that can dig down to a depth of 2 metres. The bucket comes with a grapple attachment that makes it easier to pick up stones and similar materials.

The machine is equipped with a two-lever hydraulic valve that makes excavation work smooth and easy. The mini-excavator can be moved forwards or backwards using the digging arm/bucket during the excavation process by either pushing or pulling the machine. This makes excavation work much easier.

The machine can easily be transported using an ATV or other vehicle with a 50 mm ball coupling

The mini-excavator is equipped with wheels for easy movement behind an ATV or other vehicle with a 50 mm ball coupling. When the mini-excavator is transported, mount the wheels on the digger arm side for maximum mobility. Before excavation work, move the wheels to the motor side instead and place the stabilisers on the digger arm side to provide stability.

Protected working environment in a cab

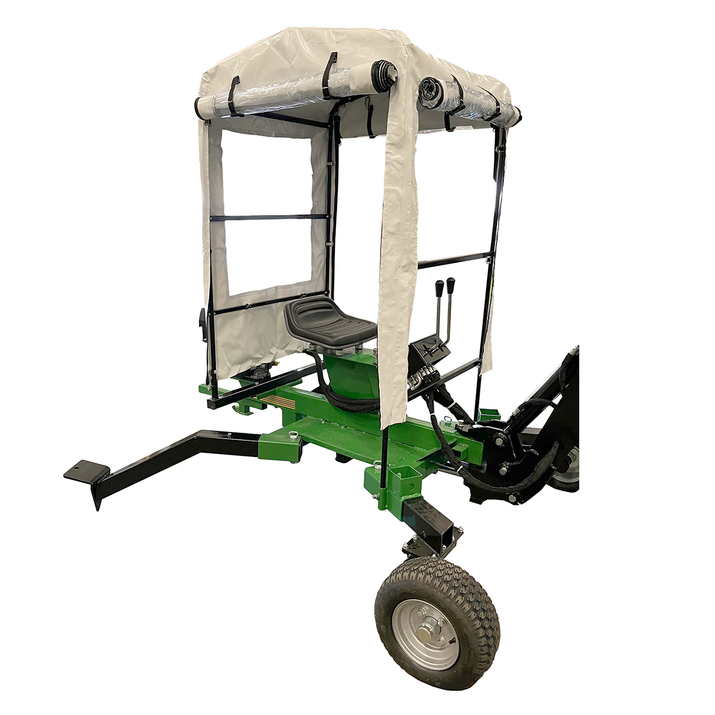

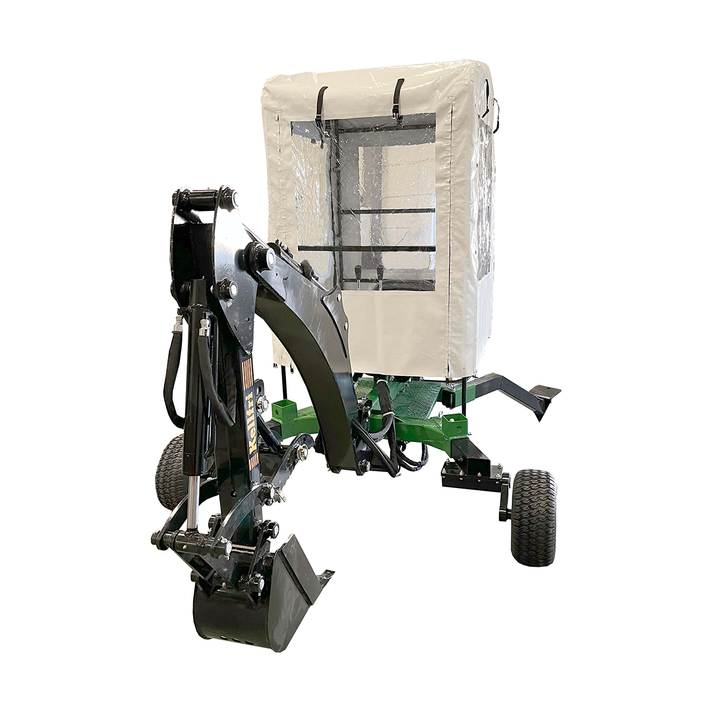

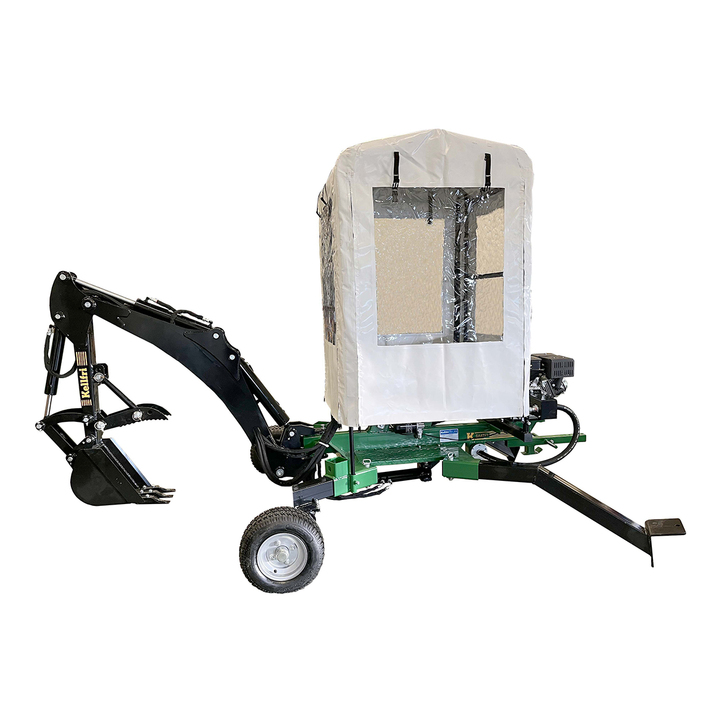

The backhoe digger is supplied with a vinyl cab that provides a protected working environment and protects the operator from the sun, wind, rain and snow. The operator can work in a comfortable and protected position without being affected by the weather.

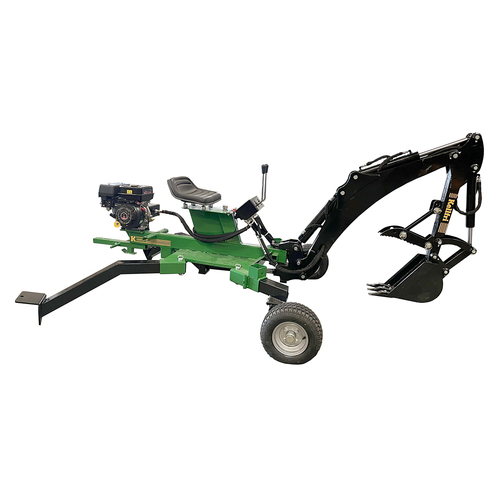

The GAATV2 backhoe digger is available in two versions, with or without a cab. If you’re interested in a mini-excavator without a cab, you can read more about the GAATV2 Backhoe Digger here.

Oil included. Check the oil level before first use.

Product requires assembly. Once assembled, it will be a reliable and efficient machine that can be used for a wide range of groundwork where space is at a premium.

Technical information:

• 4-stroke motor, 10 hp

• Fuel: Petrol

• Starter: Tow bar

• Angle of rotation: Horizontal 122°, Vertical 120°

• Excavation depth: 1,994 mm

• Range: 2,608 m

• Tipping height: 2,240 mm

• Load capacity without counterweight: 180 kg

• Load capacity with counterweight: 326 kg

• Bucket tilt: 45°

• Max. loading height: 1,475 mm

• 4 double-acting hydraulic cylinders

• Cross control (2 control points)

• Motor oil capacity: approx. 1 l

• Hydraulic oil capacity: 14.6 l

• Total length: 4,702 mm

• Width of support: 2,042 mm

• Width of main frame: 1,062 mm

• Minimum width in transport mode: 1,863 mm

• Weight: 512 kg

• 23 cm bucket including stone stop included

• Wheels and supports interchangeable for transport
