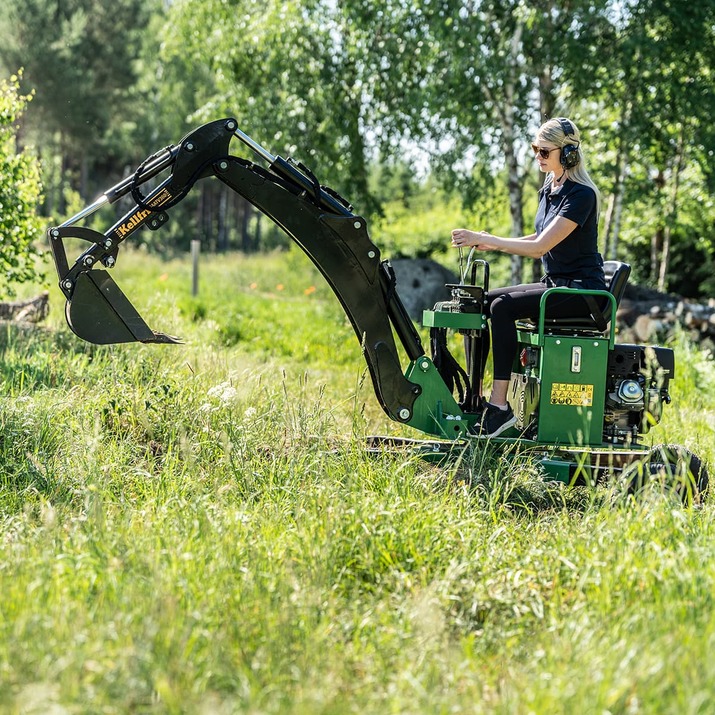

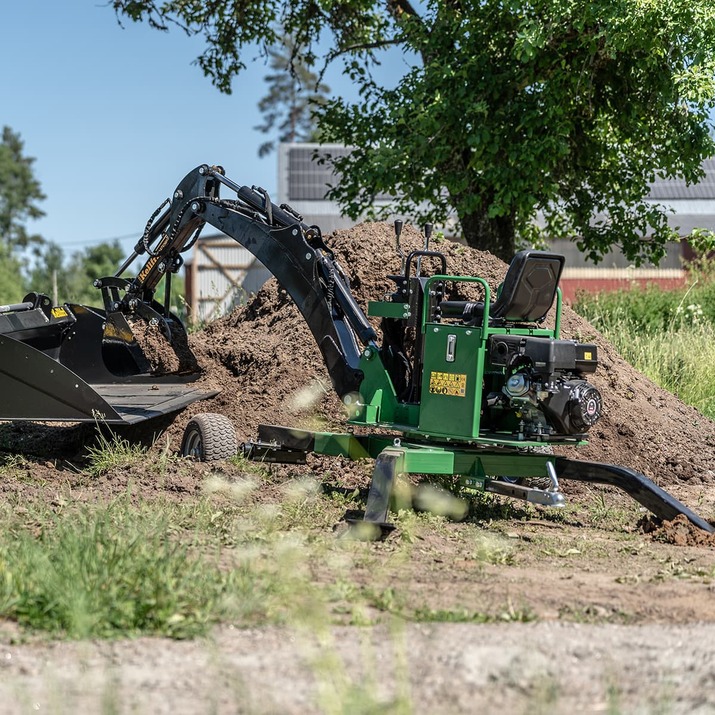

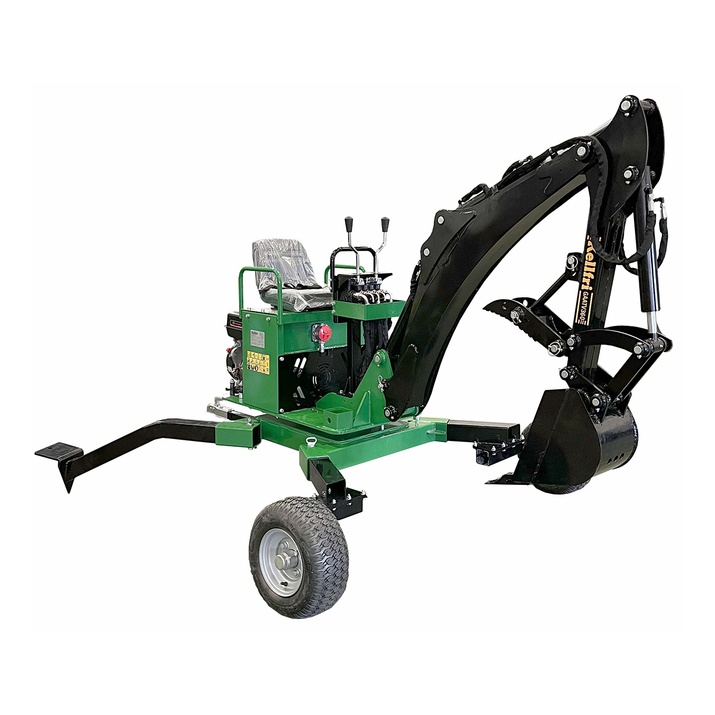

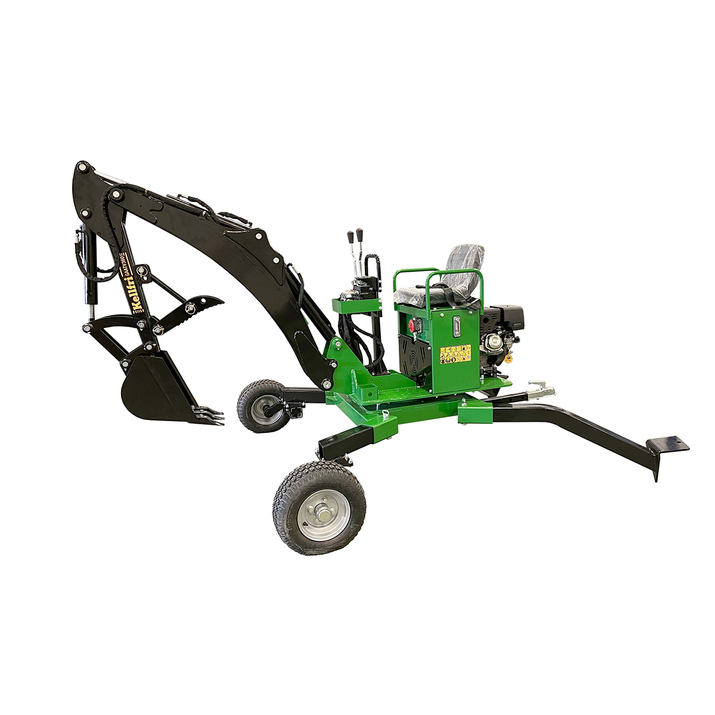

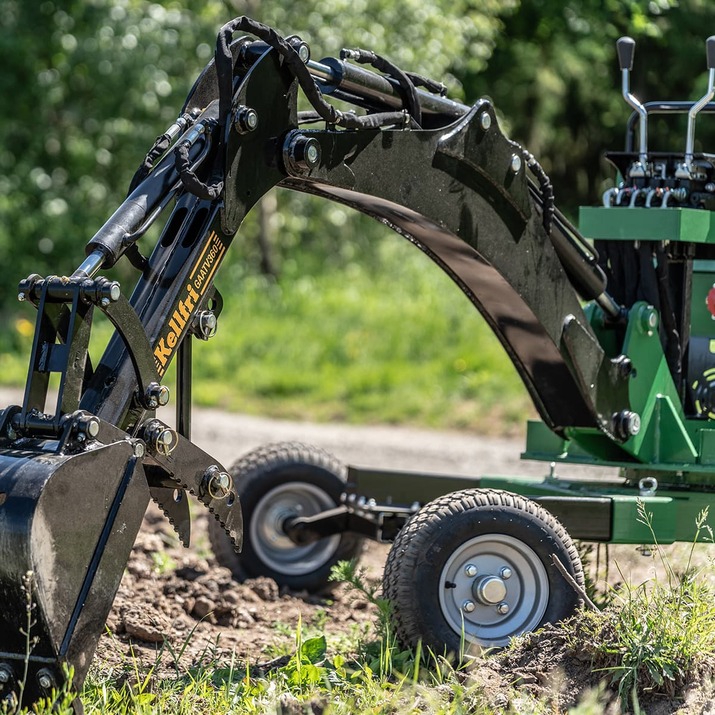

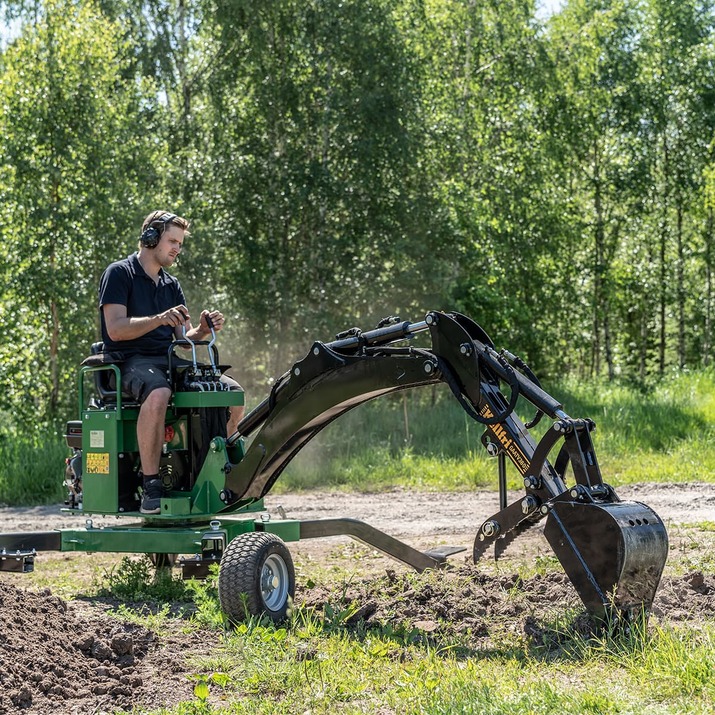

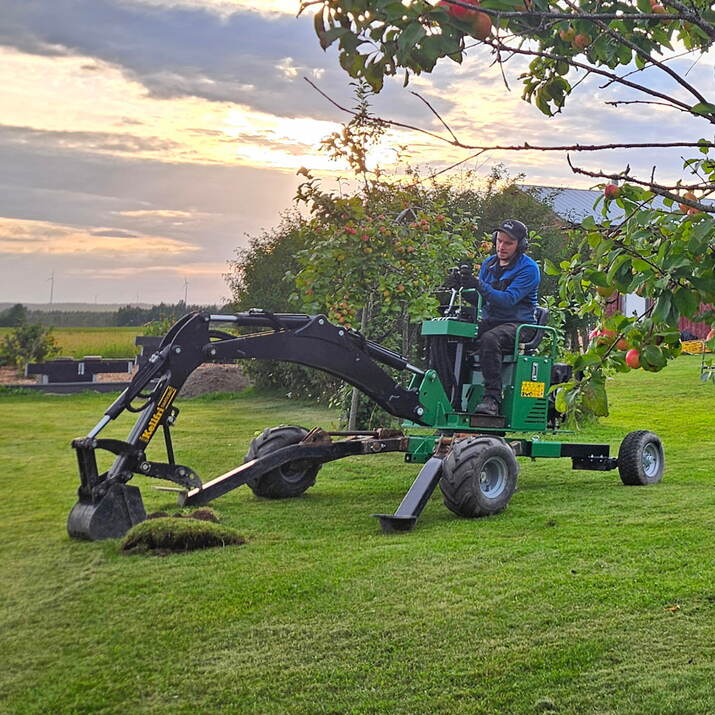

ATV Backhoe Digger 360

Mini excavator with its own power source and 360° rotating upper part

• Mini excavator 360 with a 15 hp gasoline engine

• Rotating upper part

• Digging depth approximately 1.7 meters

• Includes a toothed bucket 23 cm wide

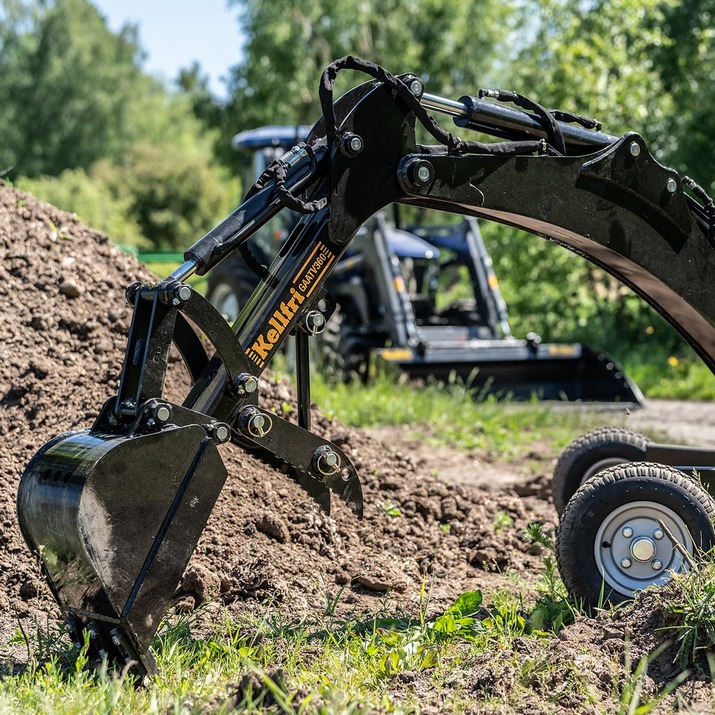

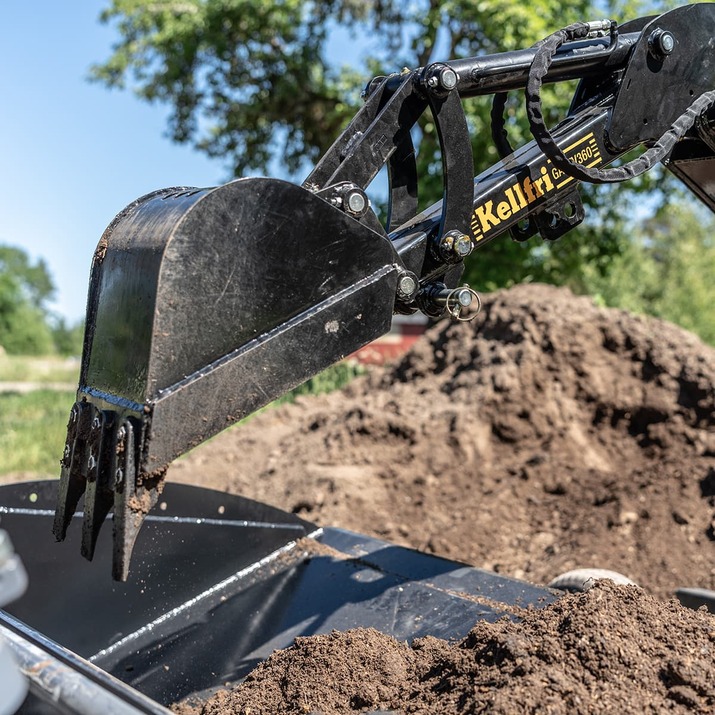

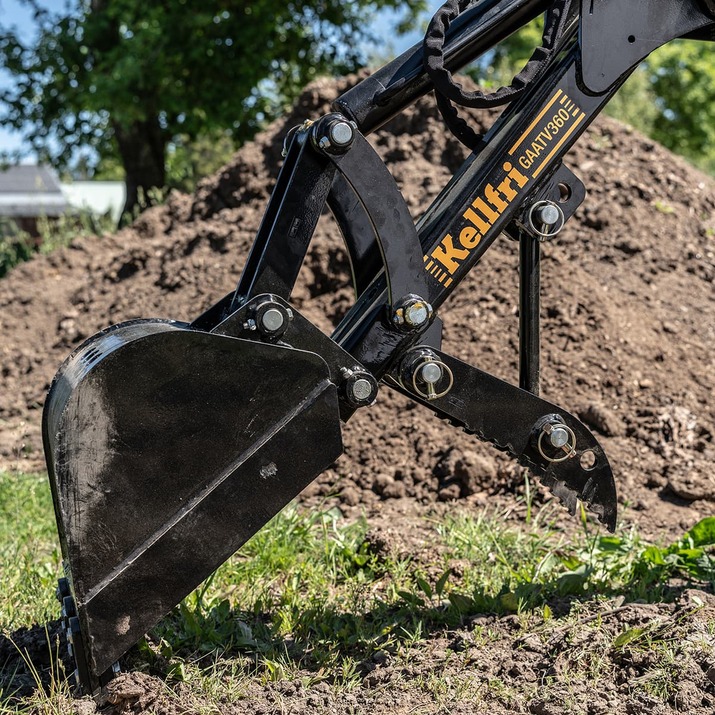

• The bucket includes a gripping attachment for stone picking

• Oil included

Power and versatility in a small package

Are you looking for a compact and well-built excavator with its own power source? Kellfri offers an impressive range of high-quality excavators, including the compact GAATV360 excavator, designed to handle various earthwork tasks where space sets the limits.

Powerful åerformance

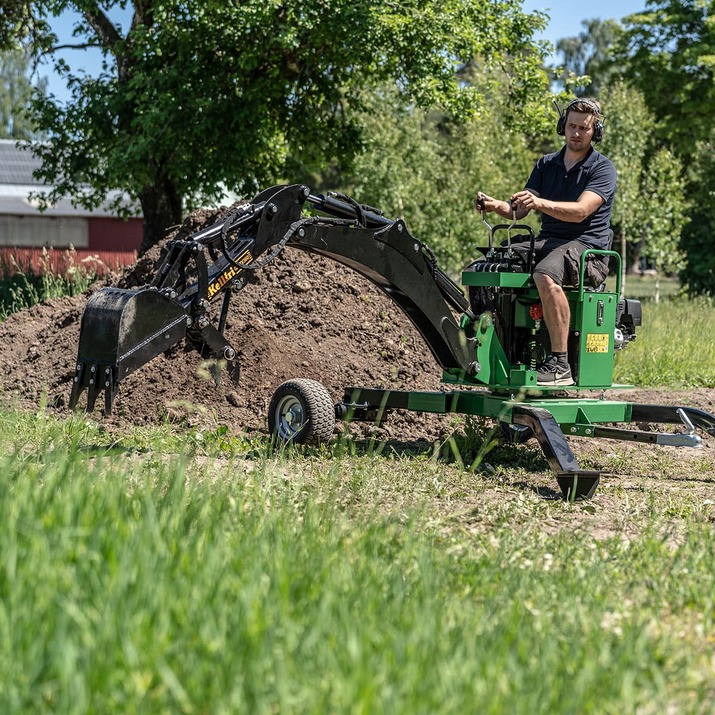

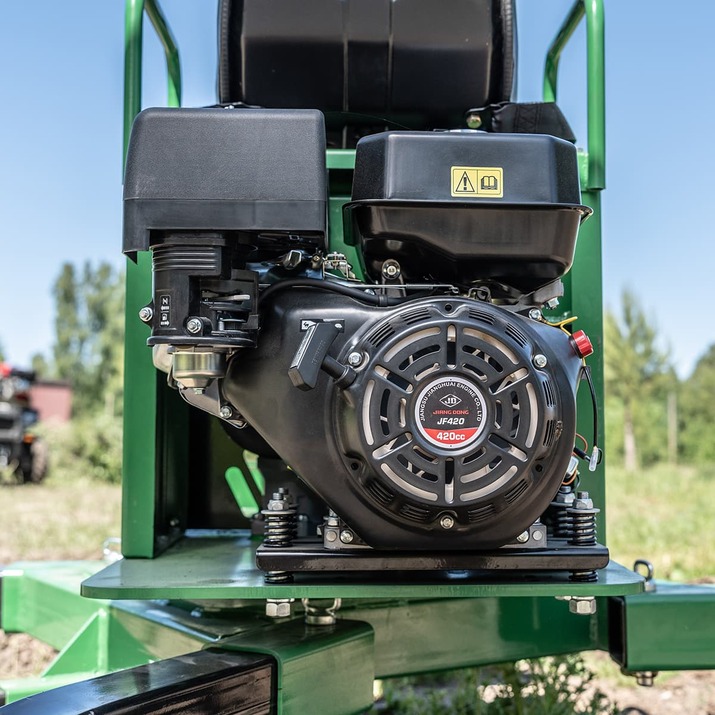

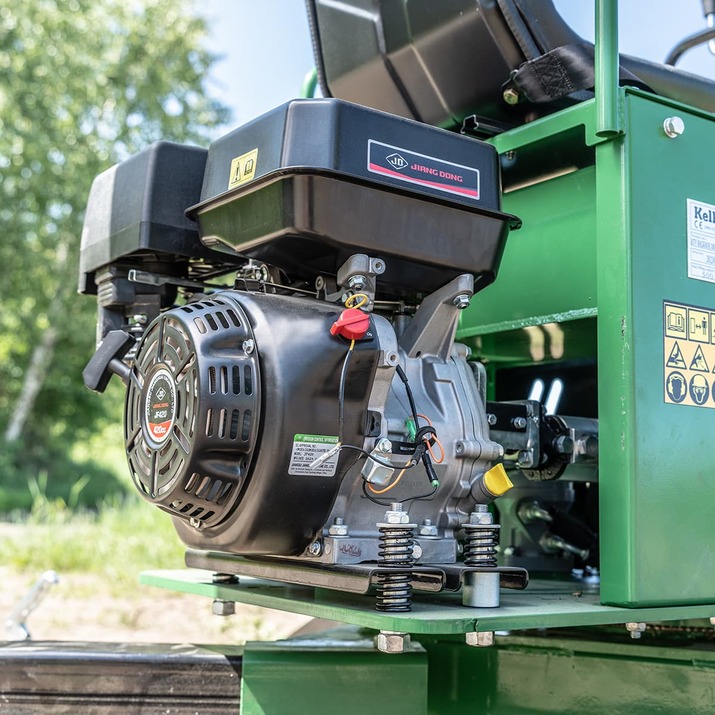

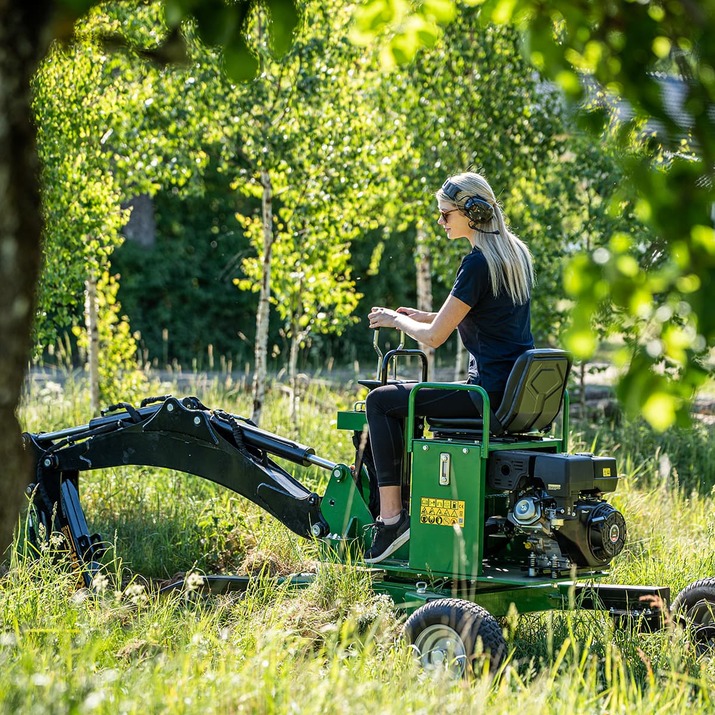

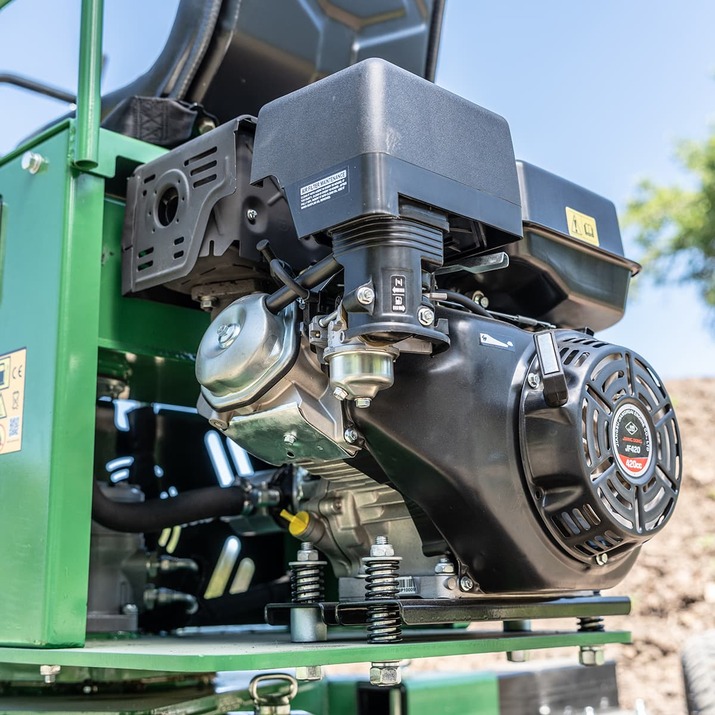

GAATV360 is a compact excavator equipped with a robust construction on the digging arm and a reinforced chassis to ensure its reliability and performance. With its own power source in the form of a 15 hp gasoline engine, easily started with a pull-start, this excavator is ready for tough challenges.

Versatile use with 360-degree rotational capability

An excavator with 360-degree rotational capability offers several advantages that enhance its usability and efficiency. Increased maneuverability makes it particularly useful in tight workspaces and places with limited mobility. This flexibility is invaluable when access to hard-to-reach places is required, eliminating the need to move the entire machine.

The ability to rotate in all directions significantly increases productivity by enabling precise bucket placement without moving the entire excavator. This saves time and energy, resulting in more efficient work.

Additionally, a rotating mini excavator reduces ground impact by allowing it to work more gently. It doesn't require as much space to turn and can avoid damaging finished surfaces or lawns.

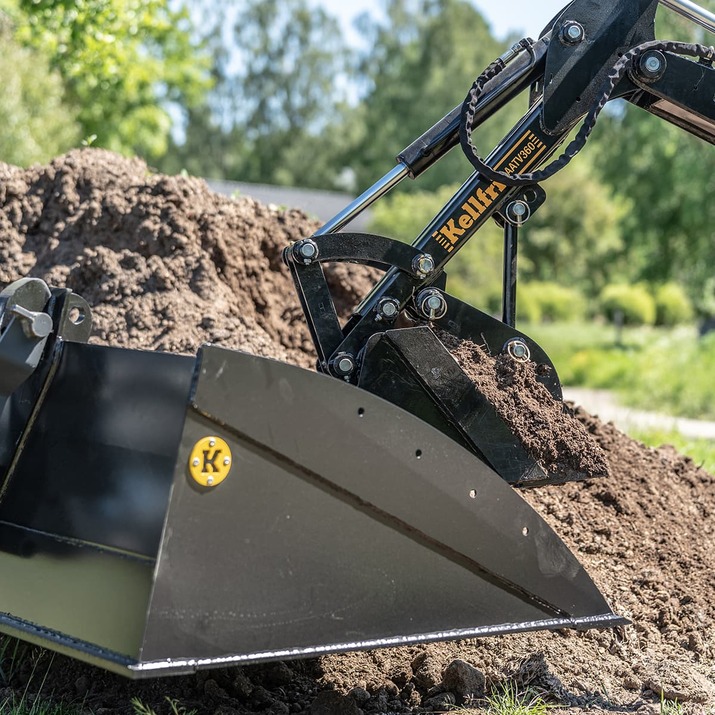

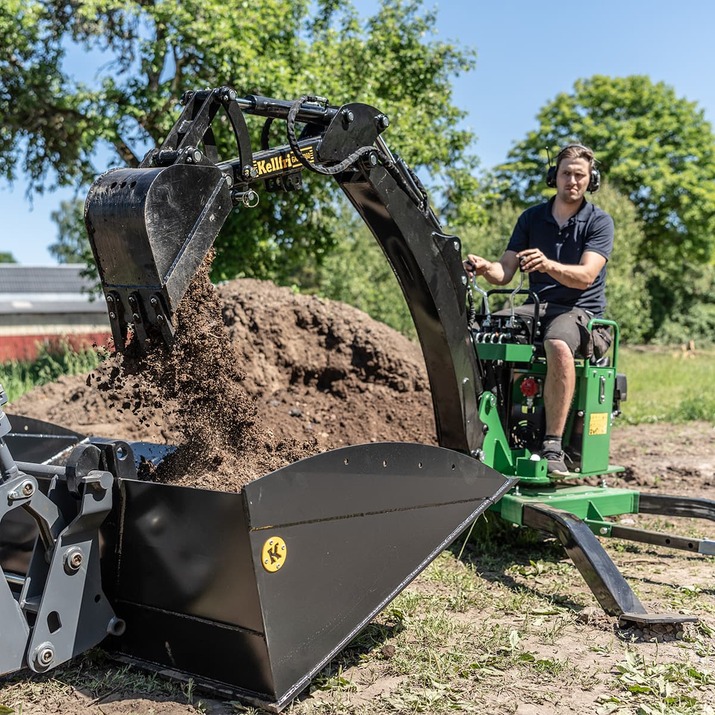

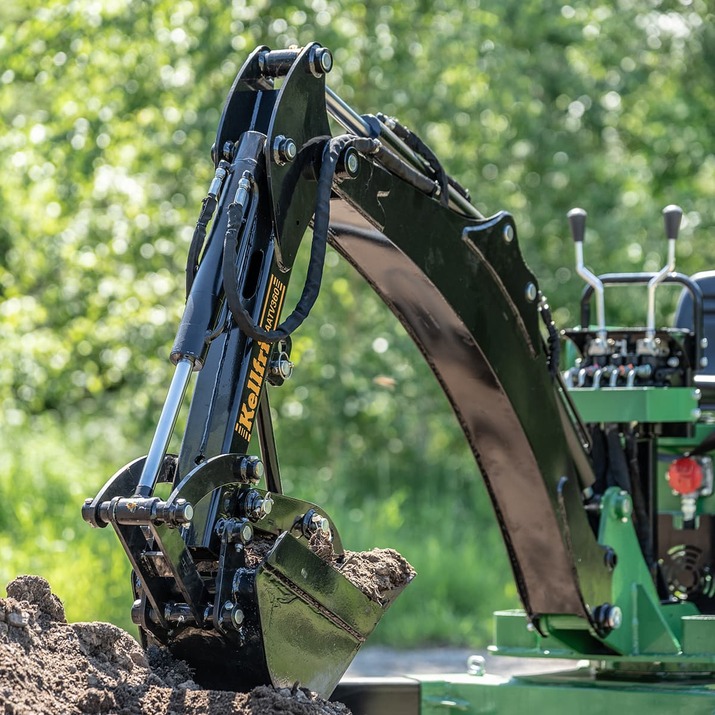

With a digging depth capacity of approximately 2 meters and a toothed bucket with a width of 23 cm, including a gripping attachment for stone picking, this excavator is ready to tackle various tasks. Additionally, there are grading and ditch buckets available as optional accessories, providing even greater versatility.

Smooth digging and easy transport

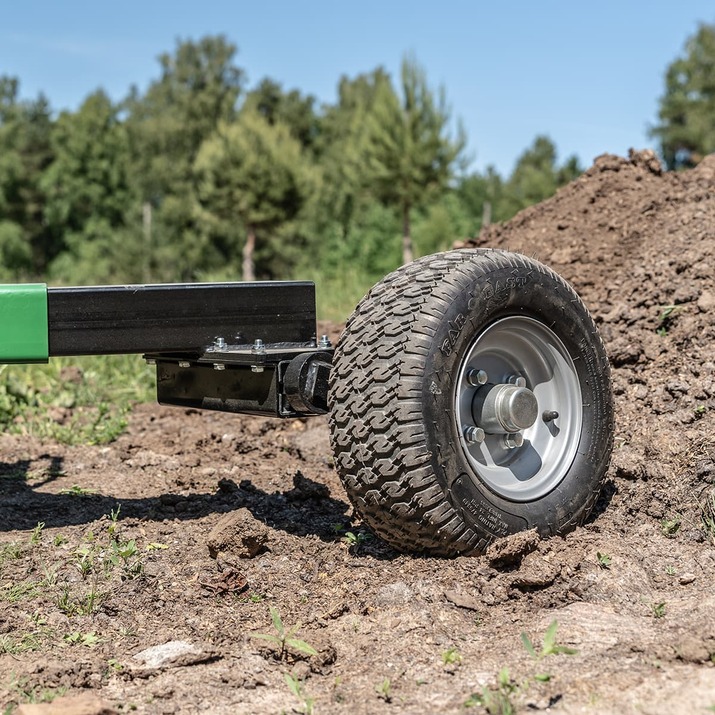

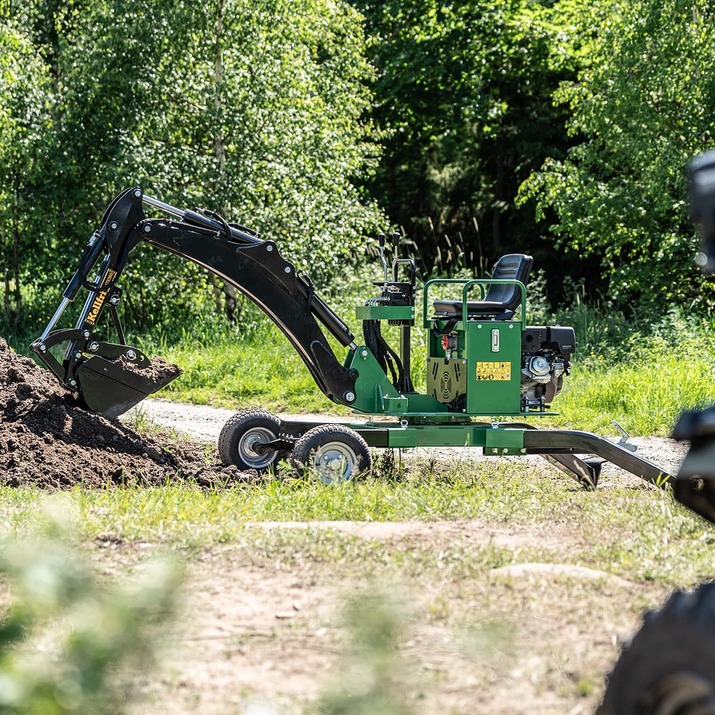

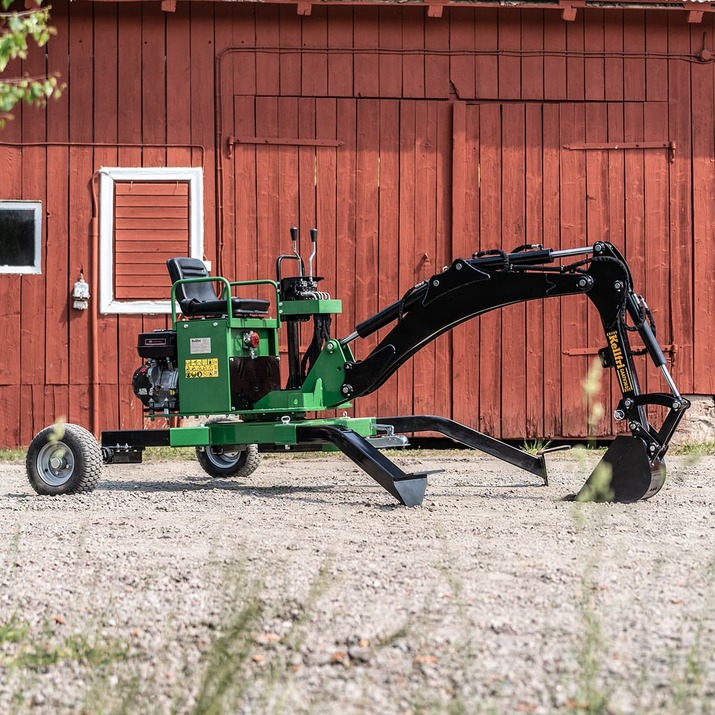

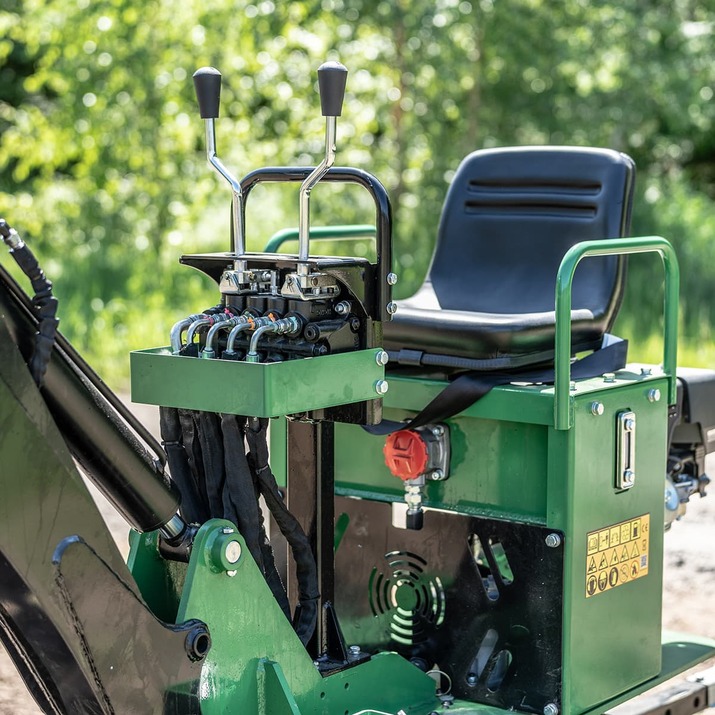

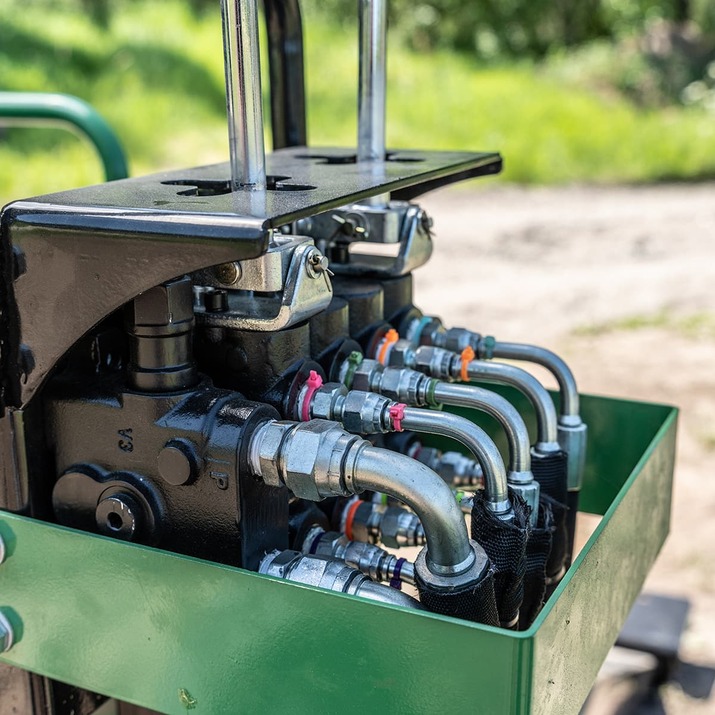

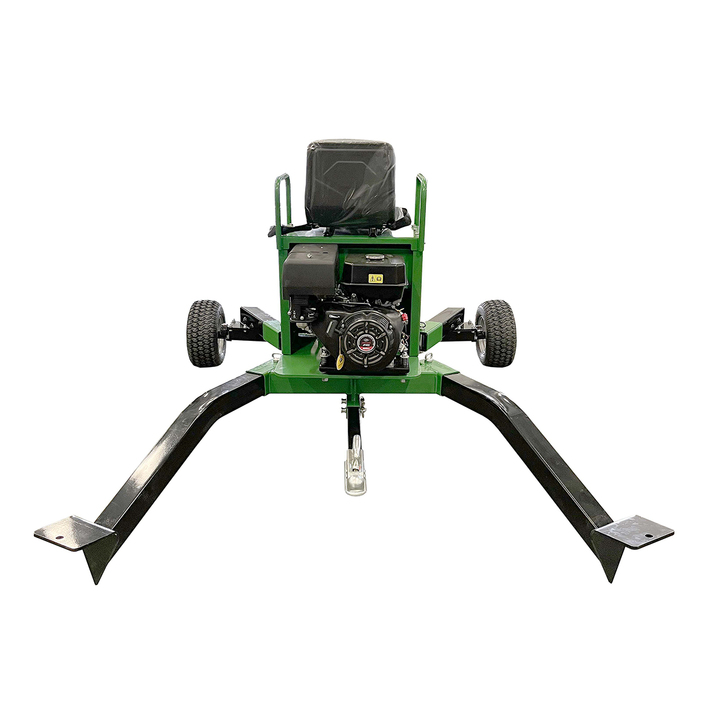

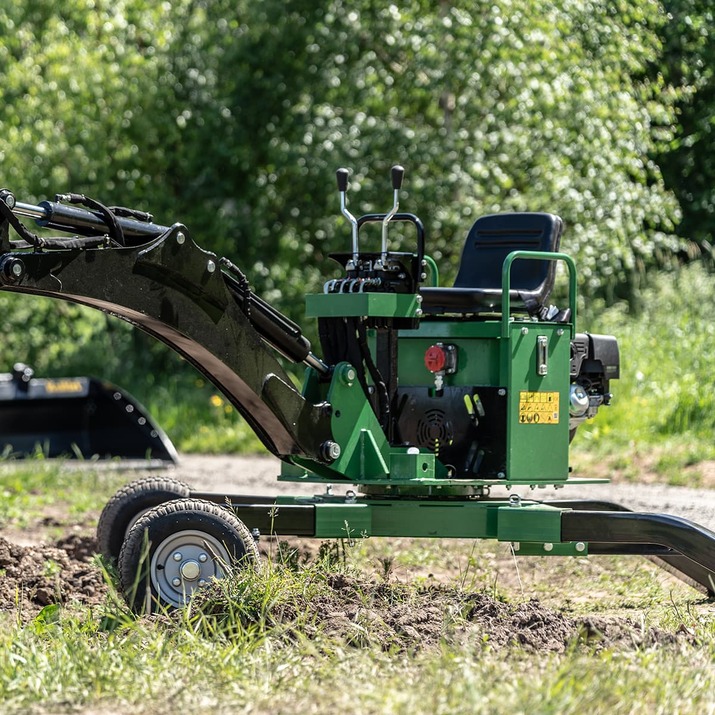

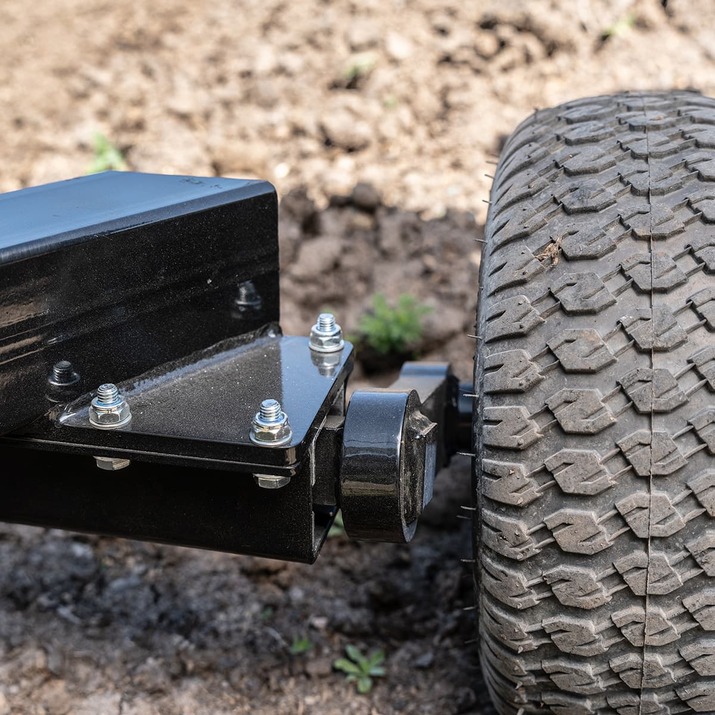

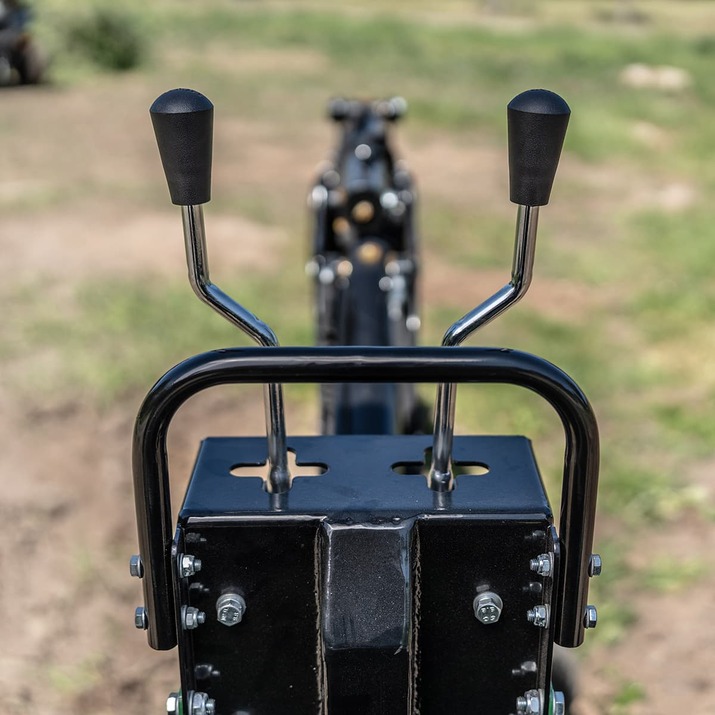

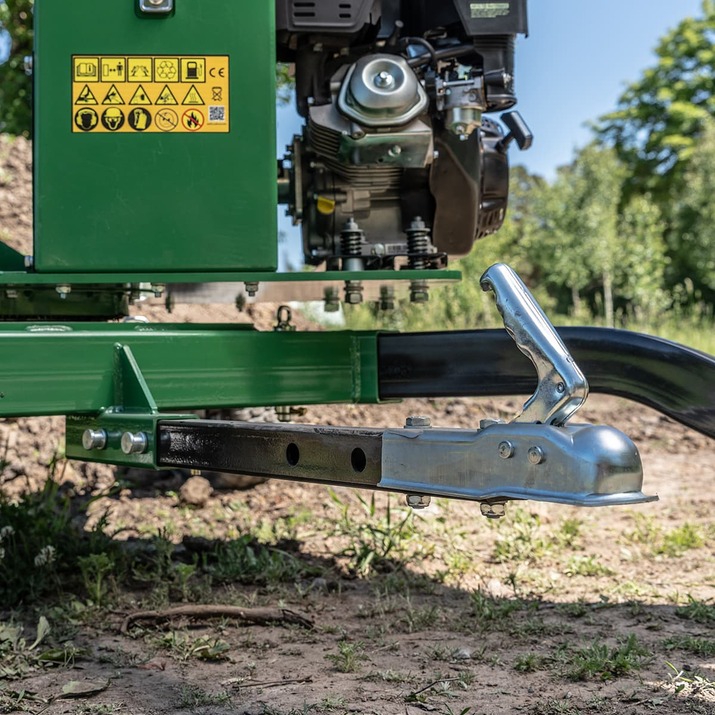

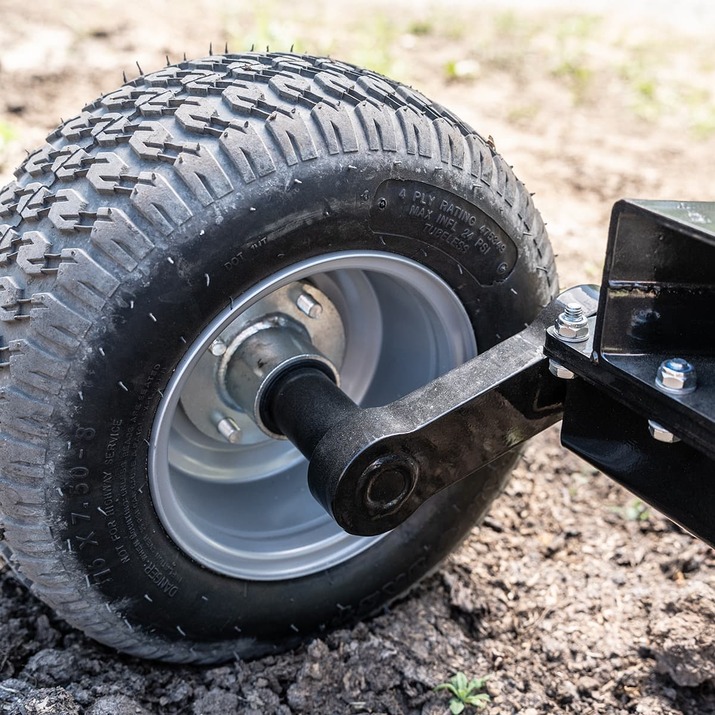

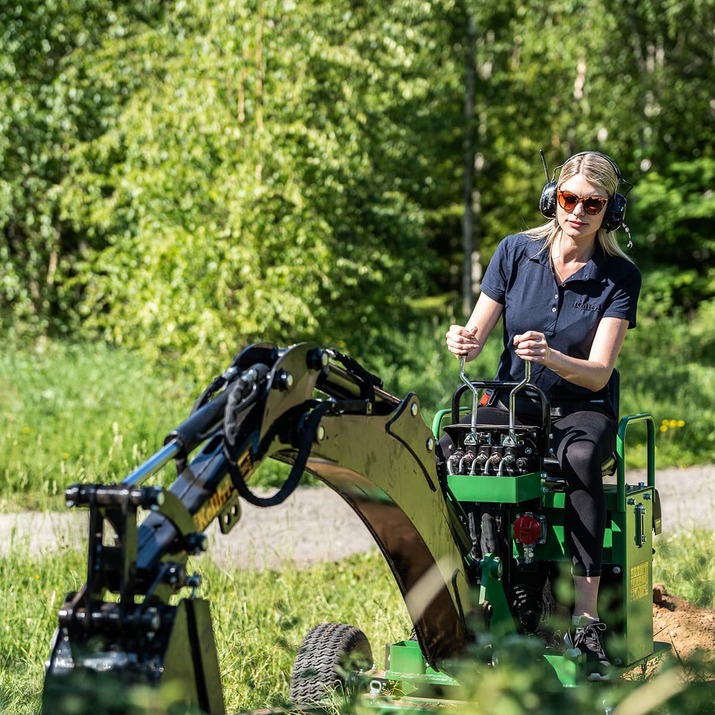

For smooth and easy digging, GAATV360 features dual-lever hydraulics. For transportation behind an ATV or another vehicle with a 50 mm tow ball, it is equipped with wheels. The wheels are mounted on the opposite side of the tow bar to facilitate easy movement. During excavation work, the tow bar can be pushed in, and the support legs removed and placed in cut-out holes on the turntable.

The Kellfri excavator GAATV360 is the ideal choice for those in need of a compact and versatile tool for various earthwork tasks.

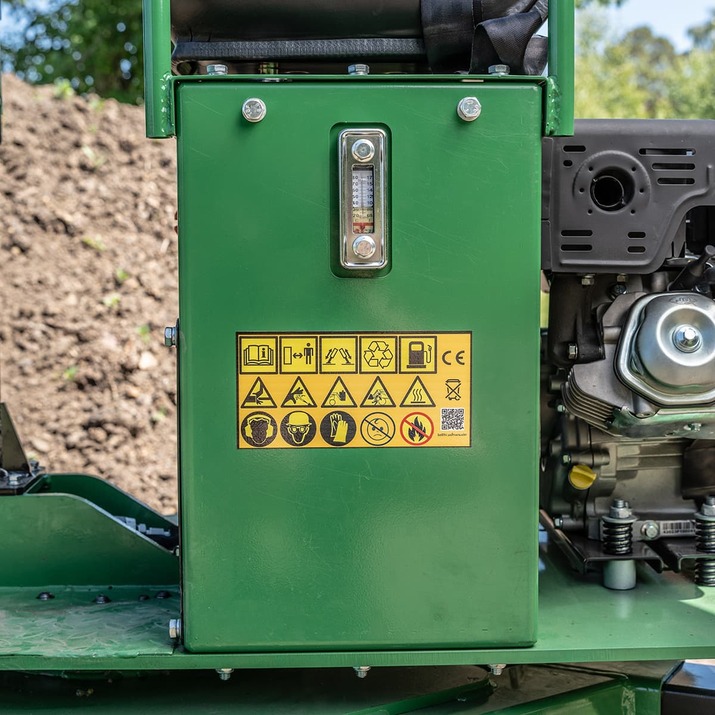

Oil included. Check the oil level before first use.

The excavator requires assembly.

Kellfri - your reliable choice for powerful and efficient earthwork!

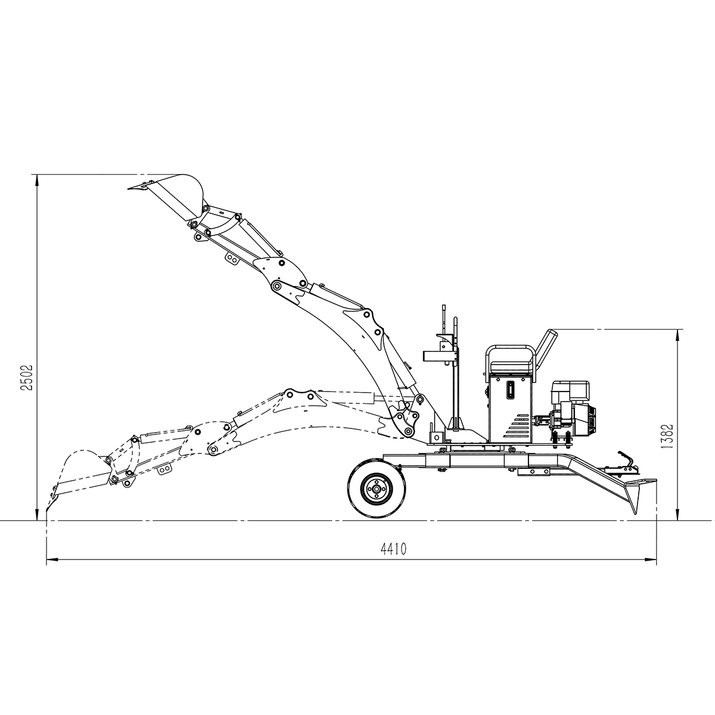

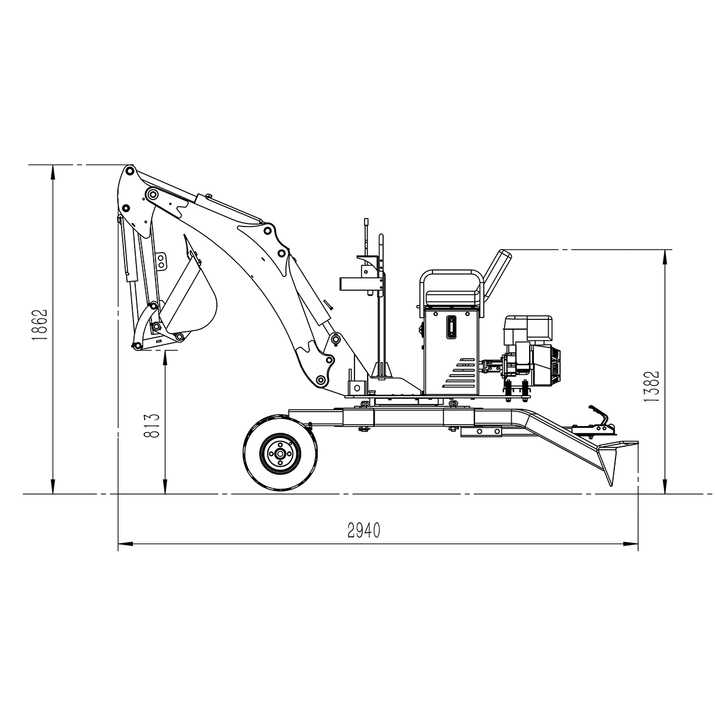

Excavator 360 for ATV - Technical information:

• 4-stroke engine 15 hp

• Fuel: Gasoline

• Starter: Pull-start

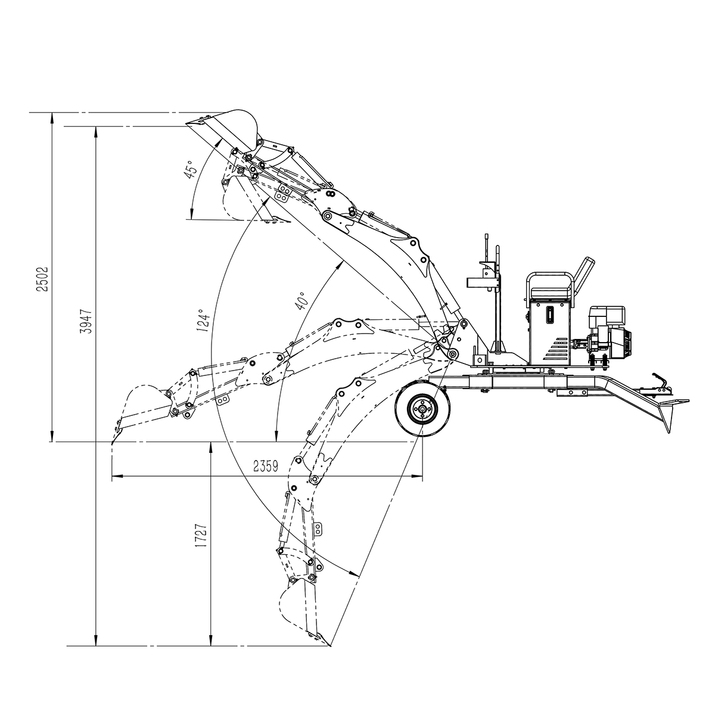

• Rotation angle: Horizontal 360°, Vertical 124°

• Digging depth: 1727 mm

• Reach: 2359 mm

• Tip height: 2502 mm

• Load capacity without counterweight: 180 kg

• Load capacity with counterweight: 326 kg

• Bucket tilt: 45°

• Maximum height: 2502 mm

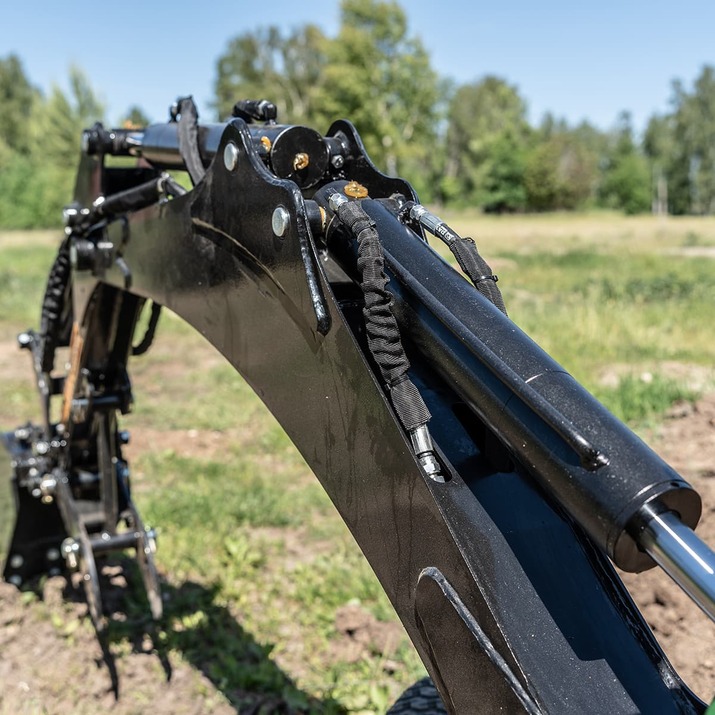

• 5 double-acting hydraulic cylinders

• Engine oil quantity: approximately 1.1 liters

• Hydraulic oil quantity: 18.5 liters

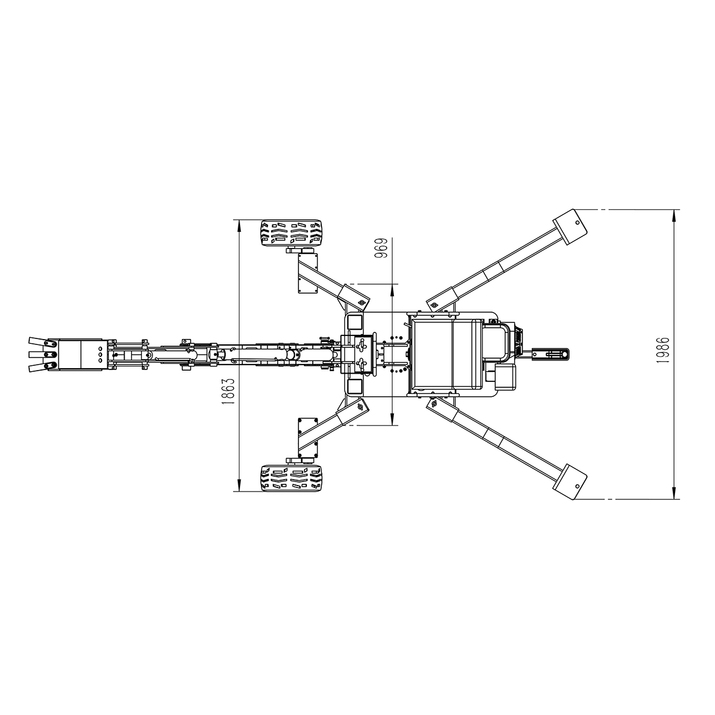

• Total length: 4410 mm

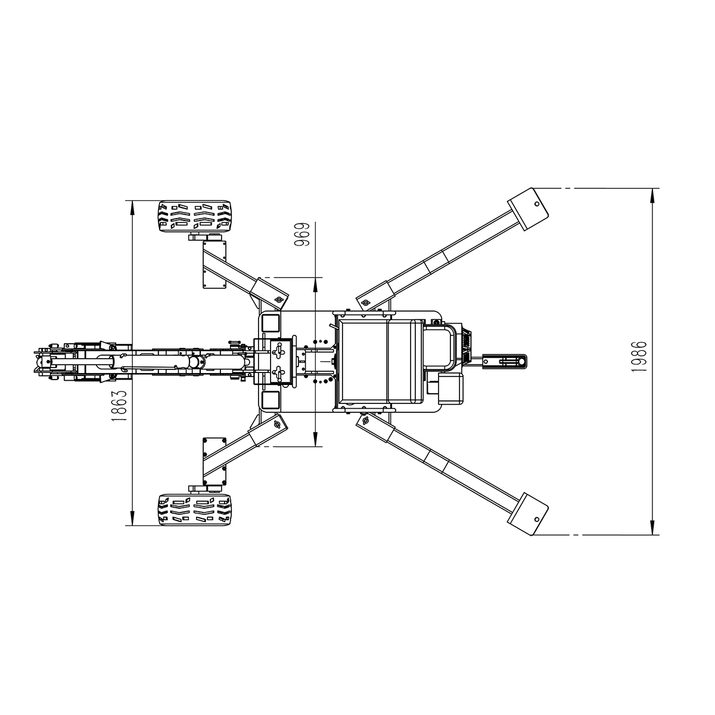

• Width of support: 1986 mm

• Mainframe width: 969 mm

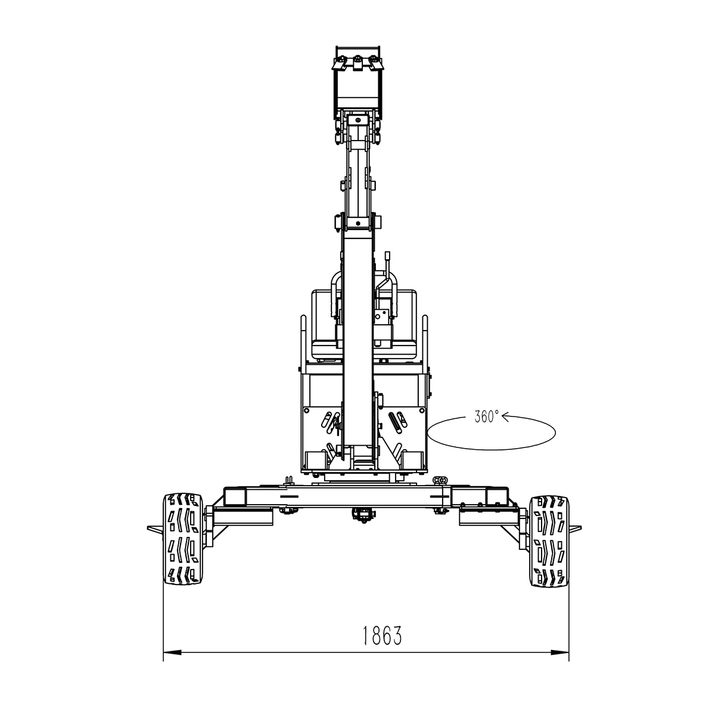

• Minimum width in transport mode: 1863 mm

• Weight: 547 kg

• 23 cm bucket including stone gripper included

• Wheels and support legs interchangeable for transport
